Direct Drive vs Bowden Extruder: Which Is Better for Your Printer?

Every FDM printer pushes filament through a hotend, but how that filament gets there varies dramatically. Bowden extruders mount the motor on the printer's frame and push filament through a long PTFE tube. Direct drive extruders mount the motor right on the printhead, millimeters from the hotend. This seemingly small design choice affects print speed, material options, retraction behavior, and upgrade potential.

If you're running a stock Ender 3 V2 (Bowden) and wondering whether to upgrade, or you're choosing between printers, here's everything you need to know.

How Bowden Extruders Work

In a Bowden setup, the extruder motor sits on the printer's frame — usually the back or top. Filament feeds from the motor through a PTFE (Teflon) tube that's typically 400-600 mm long, ending at the hotend on the printhead. The motor pushes, and the filament slides through the tube like a cable through a sheath.

The key advantage: the printhead is light. Without a heavy stepper motor riding on it, the head can change direction faster with less inertia. This translates to higher practical print speeds and less ringing at moderate speeds.

How Direct Drive Extruders Work

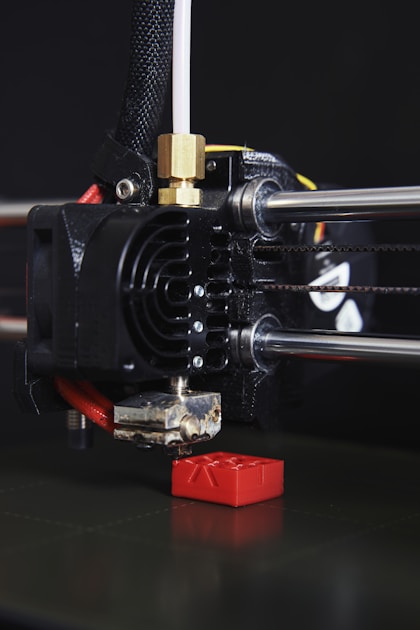

In a direct drive setup, the extruder motor mounts directly on the printhead, sitting right above the hotend. The filament path from gear to melt zone is 20-40 mm — compared to 400-600 mm in a Bowden. This extremely short path gives the motor precise, immediate control over filament movement.

The tradeoff: the printhead weighs more (typically 150-250g heavier), which increases momentum during direction changes and can cause ringing at high speeds without input shaping compensation.

Bowden Advantages

Lighter printhead = faster printing: Less mass to accelerate means higher practical speeds before quality suffers. On a Cartesian printer like the Ender 3, this matters because the printhead moves in X while the heavy bed moves in Y. A lighter head means cleaner fast prints on the X axis.

Simpler wiring: Fewer cables running to the printhead means less cable management and less strain on the wiring harness. The motor stays stationary, so its wires don't flex with every move.

Lower cost: Bowden setups are simpler to manufacture, which is why most budget printers ($150-300 range) use them. The Creality Ender series, Artillery Sidewinder, and many Anycubic machines ship with Bowden extruders.

Direct Drive Advantages

Flexible filament printing: This is the big one. TPU and other flexible filaments compress and buckle in Bowden tubes. A 600 mm tube filled with soft TPU is like trying to push a wet noodle through a straw — it kinks, jams, and under-extrudes. Direct drive eliminates the tube almost entirely, making TPU printing reliable at 20-30 mm/s with zero jams.

Shorter retraction: Bowden extruders need 5-7 mm of retraction to pull the filament back past the tube's compression zone. Direct drive needs only 0.5-2 mm. Shorter retraction means less stringing, faster retraction moves, and fewer clog-inducing heat creep issues.

Better extrusion control: The short filament path means pressure changes at the nozzle happen almost instantly. This produces more consistent line widths, cleaner corners, and better layer adhesion — especially noticeable on small, detailed prints with lots of direction changes.

Wider material compatibility: Beyond TPU, direct drive handles Nylon, carbon-fiber composites, and other tricky filaments more reliably because there's no tube friction and minimal filament compression.

Retraction Settings Compared

This is where the practical difference hits hardest. Here are typical starting values:

Bowden extruder: Retraction distance 5-7 mm, retraction speed 40-50 mm/s. These high values compensate for the pressure stored in the long PTFE tube. On some printers with extra-long tubes, you might need 8 mm.

Direct Drive extruder: Retraction distance 0.5-2 mm, retraction speed 25-35 mm/s. The short filament path means a small pull immediately relieves nozzle pressure. Going above 3 mm on a direct drive almost always causes jams.

If you're getting stringing with a direct drive, resist the urge to increase retraction distance. Instead, try: lowering nozzle temperature by 5°C, increasing retraction speed by 5 mm/s, or enabling "combing" in your slicer to route travel moves within the print boundary.

Upgrading From Bowden to Direct Drive

If your Bowden printer handles PLA and PETG fine but you want to print TPU or improve overall extrusion consistency, a direct drive conversion is one of the best upgrades you can make. Here's what's involved:

Option 1 — Bolt-on conversion kits ($30-60): Companies like Creality, MicroSwiss, and TH3D sell direct drive plates that relocate the stock extruder motor from the frame to the printhead. The Creality Sprite extruder kit is the most popular for Ender 3 series printers. Installation takes 30-60 minutes and requires only basic tools. The stock Bowden tube is replaced with a short 40 mm PTFE liner inside the hotend.

Option 2 — Premium all-in-one ($60-120): The MicroSwiss NG and Bondtech LGX Lite are compact, lightweight direct drive extruders with dual-gear hobbed drive systems. They grip filament from both sides for significantly better traction. These are heavier upfront investments but produce noticeably better results than converted stock extruders.

Which Should You Choose?

Keep Bowden if: You only print PLA and PETG, you prioritize speed over material variety, and your printer is already well-tuned. A properly calibrated Bowden setup prints these two materials excellently, and the lighter printhead gives you an edge at high speeds.

Go Direct Drive if: You want to print TPU or other flexible filaments, you print lots of small detailed parts where extrusion precision matters, or you're tired of fighting stringing issues. The upgrade cost ($30-60) pays for itself the first time you successfully print a TPU phone case without a single jam.

Already buying a new printer? Most CoreXY machines (Bambu Lab, Voron, Prusa XL) use direct drive by default because the printhead moves in X and Y while the bed only moves in Z — so the extra head weight doesn't cause the bed-slinging artifacts that plague Cartesian machines. If you're shopping for a new printer in the $300+ range, direct drive is essentially the standard in 2026.
