Resin vs FDM: Which 3D Printing Technology Is Right for You?

You've decided to get into 3D printing — awesome. But within about five minutes of research, you hit the big fork in the road: FDM or resin? They both build objects layer by layer, but that's roughly where the similarities end. The machines are different, the materials are different, and honestly, the entire workflow feels like two separate hobbies.

I've been running an Ender 3 V2 (FDM) and an Elegoo Saturn 3 Ultra (MSLA resin) side by side for over a year. Here's the honest breakdown so you can pick the right technology — or decide you need both.

How Each Technology Works

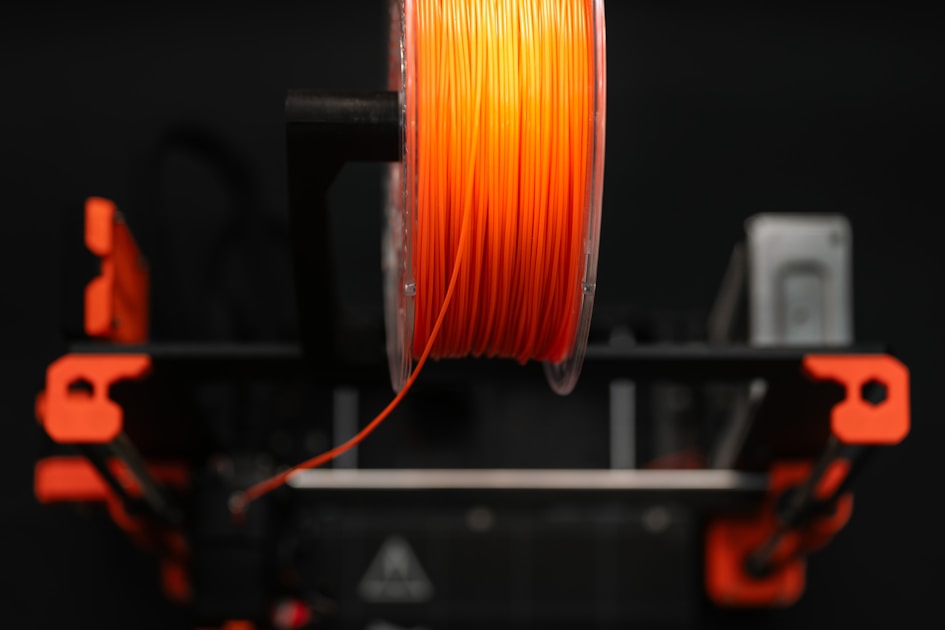

FDM (Fused Deposition Modeling) melts a plastic filament through a hot nozzle and deposits it layer by layer. Think of it like a very precise hot glue gun on a robotic arm. The nozzle moves in X and Y while the bed drops in Z after each layer. Most consumer printers use 1.75 mm filament and nozzles between 0.2 mm and 0.6 mm diameter.

Resin printing (SLA/MSLA) works completely differently. A vat of liquid photopolymer resin sits on top of an LCD screen or laser assembly. UV light cures one entire layer at once, and the build plate lifts upward after each exposure. The print literally grows upside down, pulled out of the resin vat.

Print Quality Comparison

Let's start with what most people care about. Resin wins on detail — it's not even close. A typical MSLA printer achieves 35-50 micron XY resolution with layer heights down to 10 microns. FDM with a 0.4 mm nozzle at 0.2 mm layer height looks great for functional parts, but you can always see the layer lines on curved surfaces.

For miniatures, jewelry, dental models, or anything where surface finish matters, resin is the clear winner. For functional parts, mechanical prototypes, and large objects, FDM is more practical. That build volume difference matters — a $250 FDM printer gives you 220 x 220 x 250 mm. A $250 resin printer gives you roughly 130 x 70 x 165 mm.

Cost Breakdown

Here's what the real numbers look like in 2026:

Entry-level FDM: Printer $180-300, PLA filament $18-25/kg, electricity ~$0.05/hour. A typical phone stand uses about 50g of material — that's roughly $1 in filament. Check our filament cost calculator for specific numbers.

Entry-level resin: Printer $200-400, resin $25-45/liter (standard), electricity ~$0.03/hour. The same phone stand uses maybe 30 ml of resin — about $1 in material, plus $0.50-1.00 in isopropyl alcohol and paper towels for cleaning. For a deeper look at all the hidden costs, check our full cost breakdown.

Safety: The Elephant in the Room

FDM is relatively safe. PLA emits minimal fumes — you can run it in a living room without issues. ABS and ASA need ventilation, but PLA and PETG are fine in any room with normal airflow.

Resin is a different story. Uncured photopolymer resin is a skin sensitizer and produces unpleasant fumes. You need nitrile gloves (not latex — resin eats through latex), safety glasses, and good ventilation. I run mine in the garage with a vent fan. Some people build enclosures with carbon filter exhaust.

Post-Processing

FDM post-processing is optional. Pop the print off the bed, maybe clip some support nubs, and you're done. If you want a smoother finish, you can sand, prime, and paint — but for functional parts, prints come off the bed ready to use.

Resin post-processing is mandatory. Every single print needs: removal from the build plate (usually with a metal scraper), washing in IPA or a water-washable resin cleaner (2-5 minutes), support removal, and UV curing (5-15 minutes in a curing station or sunlight). Skip any step and you get sticky, weak parts.

Materials Variety

FDM has the wider material selection by far. PLA, PETG, ABS, ASA, TPU, Nylon, PC, carbon fiber composites, wood fill, metal fill — dozens of options with different properties. You can pick the exact material for your application.

Resin has fewer options: standard, tough, flexible, castable, dental, and high-temp. The variety is growing, but you're still mostly choosing between "brittle and detailed" or "tough and slightly less detailed." Engineering resins exist but cost $60-120 per liter.

Who Should Pick FDM?

Go FDM if you want to print functional parts, large objects, or you value simplicity and material variety. If you're a beginner who wants to learn without worrying about chemical safety, FDM is the way to start. Check our best budget printers guide for solid starting options under $300.

Who Should Pick Resin?

Go resin if you're printing miniatures, jewelry, dental models, or anything where surface detail is the priority. Be ready for the safety requirements and the messier workflow. If you have a garage or well-ventilated space and don't mind wearing gloves, resin delivers results that FDM simply can't match at any price.

Or Get Both

Here's the honest truth: most serious makers end up with one of each. A $200 FDM machine for functional parts and large prints, and a $250 resin printer for detail work. For under $500 total, you cover 95% of what 3D printing can do. That's less than a single mid-range printer cost five years ago.
